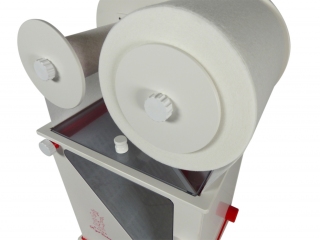

Dreambox® - COMPACT rolling fleece filter - UPGRADE-KIT optional inlets
For existing COMPACT Vlies / fleece filter
Dimensions: 30 cm wide x 33 cm length x 60 cm height
Flow rate: ~ min. 500 - max. 6000 liters
red pipe socket 40mm diameter
GF pipe with threads suitable for:
Solo fleece filter, for subsequent installation into a glass filter boxes.
Available with manual operation, (crank) or as a full automatic machine.
Due to numerous customer requests to offer an everyday suitable inclined bed fleece in RE quality, we now offer an inclined bed fleece. With our Dreambox COMPACT nonwoven filter, changing roles is a breeze, not even your hands get wet. The roller change is done by water and thanks to the sliders and extendable roller deflection, the hitherto cumbersome role exchange for competitor models, where often the complete fleece had to be pulled out of the filter, is now obsolete. The fleece guide is carried out with a slider, which can be inserted from above and completely removed.
At the customer's request, we offer this model with hand crank operation (manually). Here, the dirty fleece with one or two revolutions with the smooth-running crank is turned by hand. The background to this development is that the customer is usually in the morning and in the evening at the tank and can thus guarantee the nonwoven transport manually with a small hand movement. At the same time, the nonwoven is designed in such a way that a conversion kit is ordered without any problems and the RE fleeceer is upgraded to a fully automatic system with just a few simple steps. In this way, RE technology can be purchased cheaply and without electronics.
The advantages in detail:
> Solid and heavy construction, 8 mm PVC-CAW, hot gas welded
> Easy role change system
> Available as a hand-operated model, or as fully automatic version
> Hand-operated models are already pre-equipped for later retrofitting to the fully automatic version
> Timer function, with integrated trailing relay, adjustable from 0 to 30 seconds (control of the nonwoven discharge)
> 12 Volt technology
> Height-adjustable sensor, German make (hand crafted Made in Germany)
> 12 Volt planetary gear motor with neat pull-through ( 5 Nm )
> Internal gear drive, overload and shatterproof, developed by Klaus Jansen (CEO and founder of Royal Exclusiv)
> Internal overflow protection
> Integrated flood chamber, for effective water calming
> Standard with 2 inlet tubes, 40 and 32 mm
> Pre-equipped to connect another 3 x 40 mm pipes
> Inclusive coverage
> Quiet operation
> Winding reel can be unscrewed
> Grade 2 titanium screws, stainless
> Roller holder on the right, also screwable
> Basic dimensions: 30 x 33 cm, height over all: 59 cm, height without reel : 35 cm
> Minimum water level 13, maximum water level 18-20 cm
> max. flow rate with almost 20 cm of nonwoven width: up to 6000 liters ( 12,000 liters model in preparation )
> incl. ring grooves in the floor to jack up (increase) the fleece with 40 mm PVC tubes
> Bracket tubes in the 5 cm range available from us. Necessary if the water level in the filter is over 20 cm
> Control electronics of the fully automatic machine with 3 operating states : Off - permanently on/fleece rolls on - sensor operation
Videos about the Product COMPACT rolling Fleece filter - Vliesfilter
